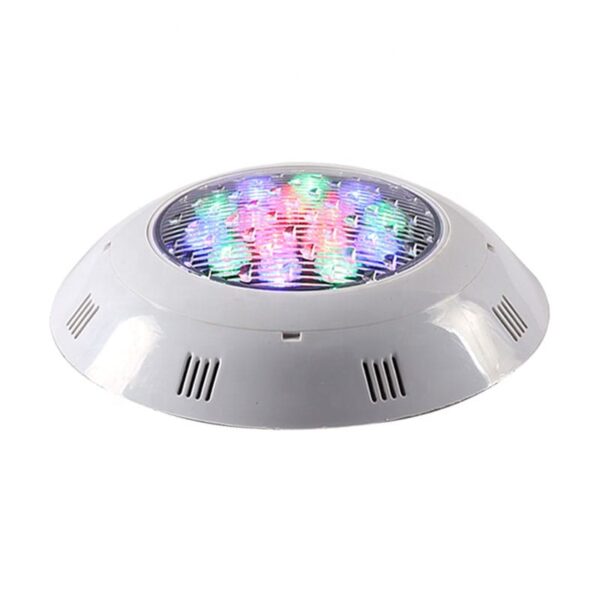

Above Ground Pool Lights IP68 Waterproof RGB Led Underwater Swimming Pool Light 12V
- Brand: AUCCE
- Manufacturer: OPPNO Lighting
- Size: φ295*H70mm
- CCT: White/Warm white/RGB
- Voltage: AC 12v
- CRI > 90
- Wattage: 12W
- Lumens: 1400lm
- Certificate: CE/RoHS/UL/FCC
- Warranty: 3 years
Above Ground Pool Lights Describe
Pool Lights Features:
The led above ground pool lights must be installed on a flat surface of the pool. Place the mounting plate on the concrete wall and tighten it with 4 screws. The conduit must be put next to the mounting plate.
Reserve at least 150mm of cable to coll around the back of the light. This 150mm of cable allows the pool light to be serviced after the pool is filled with water.
Feed cable through the conduit to the junction box or low voltage transformer.
The top sign on the light should be lined up with 12 o’clock position. If there’s not a top sign, the screw hold on the face ring of the light should be lined up with 12 o’clock position. Hang the light onto the mounting plate and tighten the pilot screw.
Pool Lights Installation
Please calculate the transformer watts according to the number of lamps.
If you need to play 20pcs light for the same steps, please calculate as 7.5w*20pcs*1.3=195w. You need 200-250W AC transformer for fitting it.
Working in 12V AC.
The transformer and RF controller should be controlled in 10m distance from lamps. If distance is far away from lights, you need to add a power supply and RF controller watts.
